8CH 1080P Lite DVR CCTV System 4/8Pcs FD 2.0MP Security Cameras IR Outdoor IP66

Note：
1.If you don't purchase a hard disk,you can't record and review the video.
2.If you purchase a package with a hard disk, the hard disk may be placed directly in the DVR or placed separately in the package. If you have any questions, please contact us.
3.Our 8CH DVR can connect 8 cameras max, so you can add extra cameras in the future.

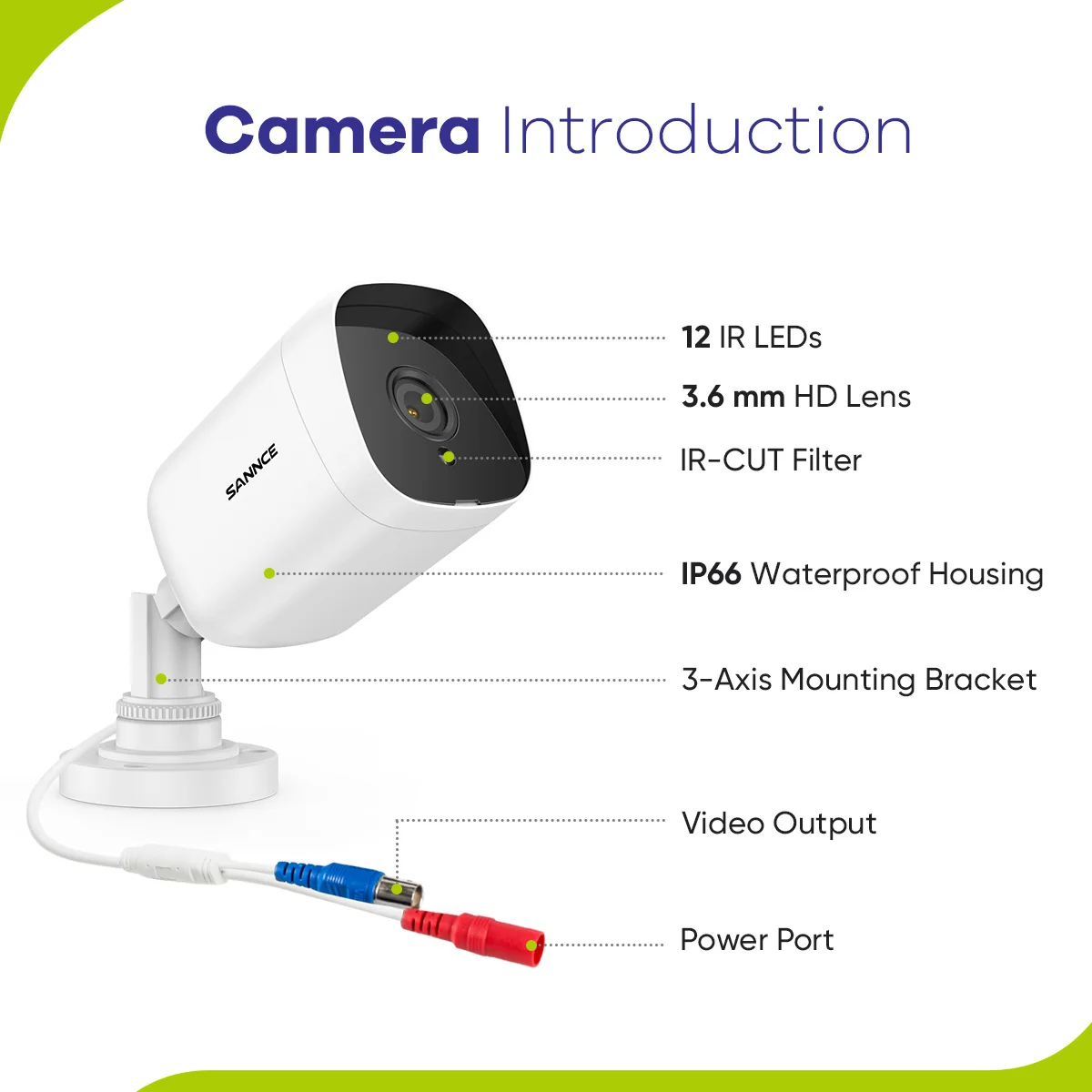

Camera Key Features
★ TVI 1080P high clarity bullet camera
★ Up to 30m night vision with 12pcs IR leds
★ 3.6mm lens brings everything back to life
★ Clear day and night vision with auto IR-cut

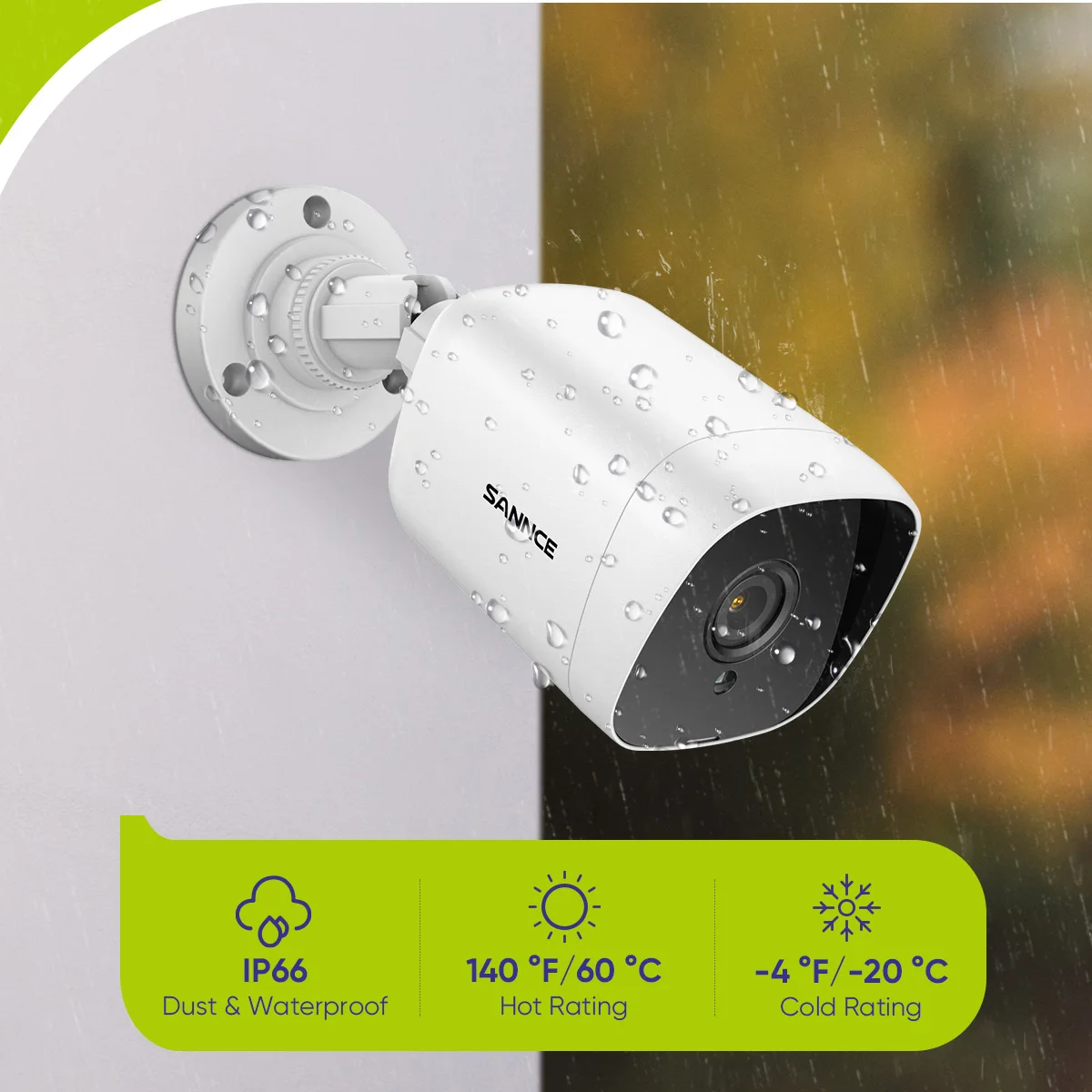

★ IP66 Dust and Waterproof Rating

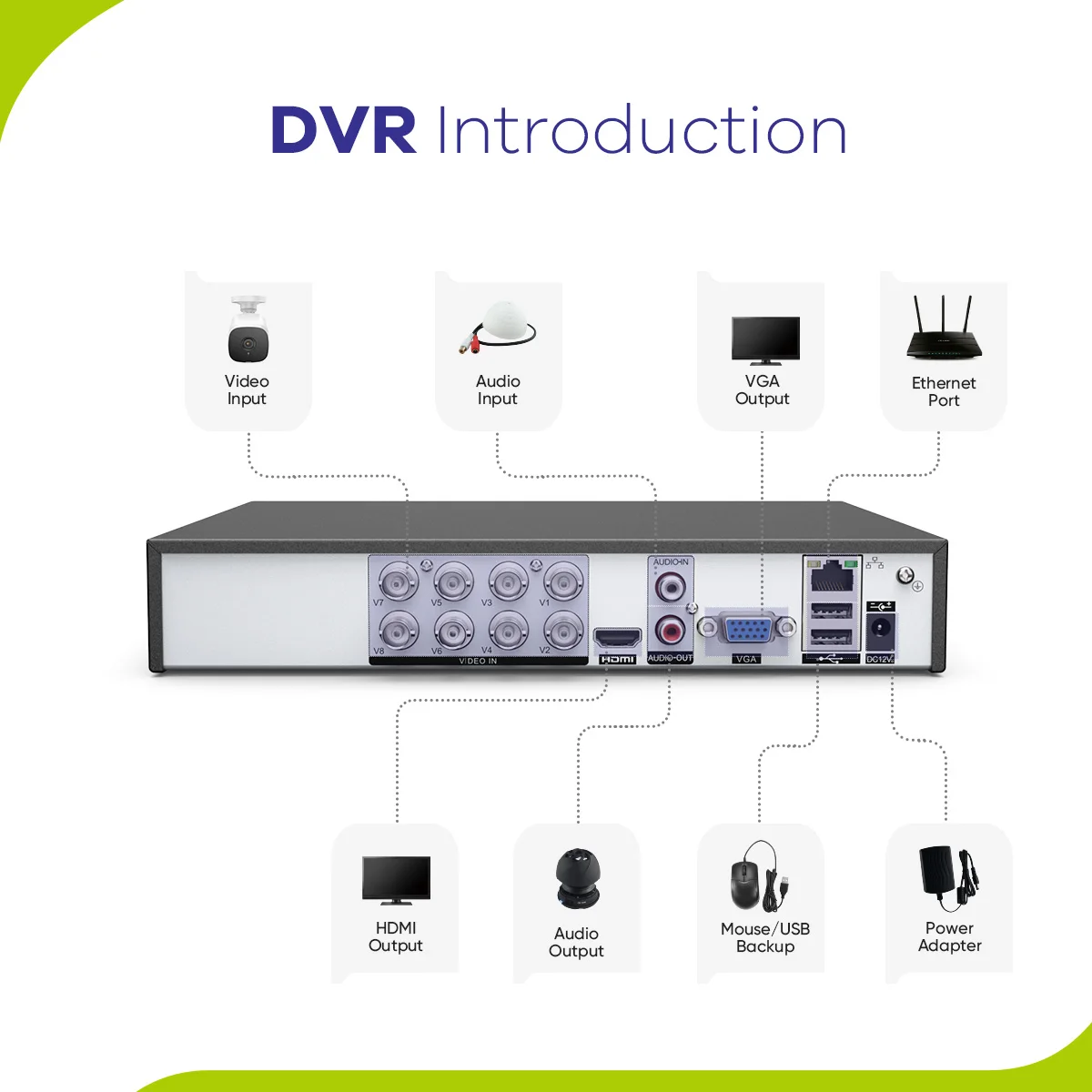

DVR Key Features
. Support 8CH 1080N definition encoding
. Support AHD, TVI,CVI, CVBS, IP video input
. HDMI/VGA simultaneous video output
. 1 SATA (Up to 8TB)
. 1*10/100Mbps auto-adaptive Ethernet port, RJ45 port
. Automatic networking support, a key to add equipment
. Support alarm information push to phone
. Support remote access, support ARSP
. Mobile phone remote monitoring (iOS, Android)
. Support Multi browser access，VMS PC client

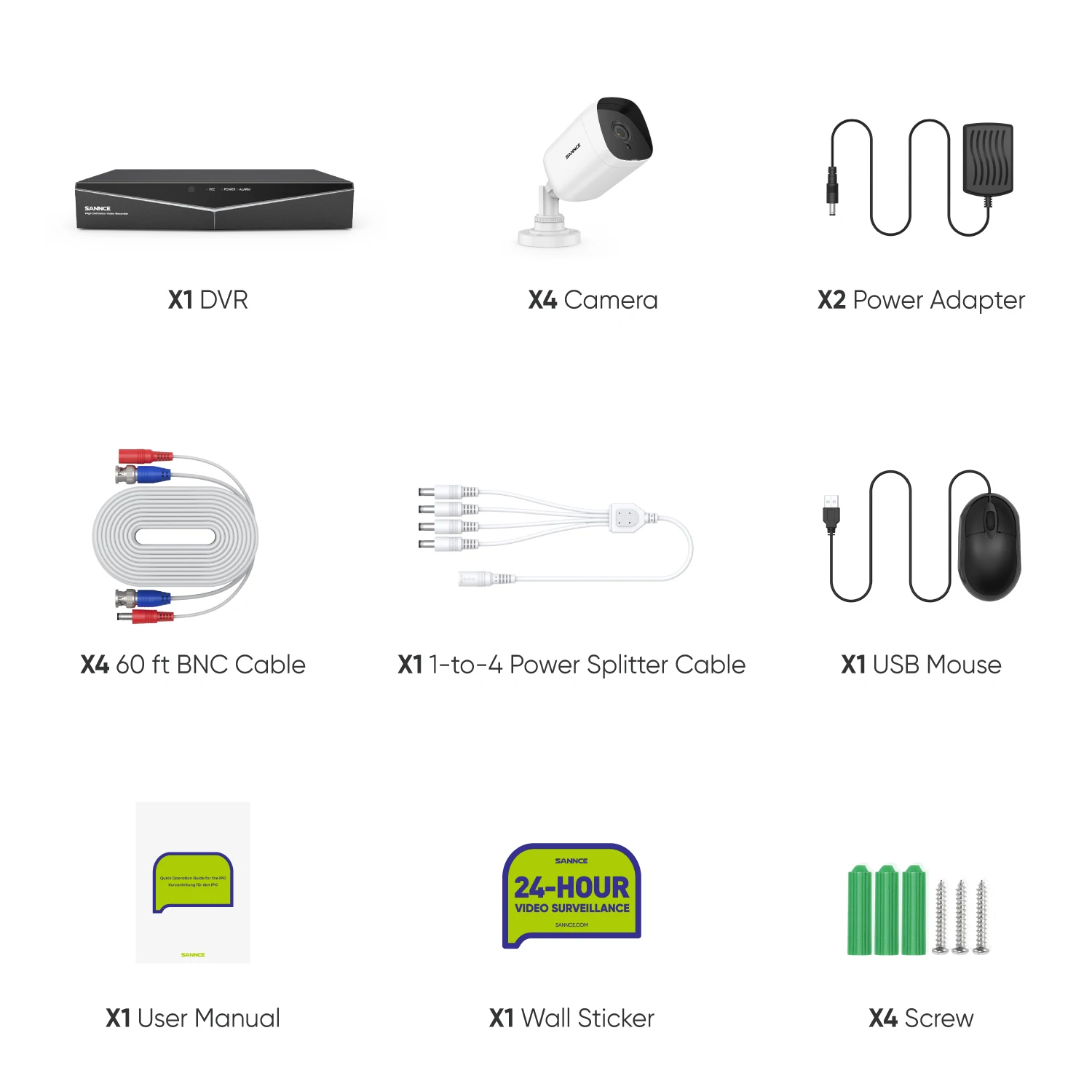

4Pcs Camera Kits
8Pcs Camera Kits
DVR
Video & Audio
Codec
H.264+
Video input
8*BNC
HDMI output
1*HDMI (MAX:1080P)
VGA output
1*VGA (MAX:1080P)
Audio I/O
1/1
Encode
8*1080N@15fps
Decode
4*1080N@15fps
Multi-mode
Analog: 8*1080N@15fps;4*5M-N(21fps）
Hybird: 8*1080N@15fps(analog)+2*1080P
IP: 16*1080P；16*5MP
Playback
4CH (Analog mode)
Compression
G.711a
Intercom
Support
Hard Drive
HDD
1*SATA interface
HDD Capacity
Up to 8TB Capacity
Management
Record mode
Manual>Motion detection>Schedule
Inquire mode
Inquire by Time/Calendar/Event/Channel
Storage mode
Sata HDD
Backup
Network, USB storage
External Interface
Ethernet port
1*10/100Mbps Ethernet port, RJ45 port
Alarm I/O
/
PTZ control
/
USB Port
2*USB2.0 ports
General
Power supply
12V/2A
Consumption
<10W(Without HDD）
Temperature
0℃- + 55℃
Humidity
10% -90% RH
Dimension
255(L)* 236mm(W)* 44mm(H)
Weight
Around 1KG

HD Camera
Camera
Video Resolution
HD 1080P
Signal system
PAL/NTSC
Image sensor
Progressive Scan CMOS
Lens
3.6mm
Min.Illumination
0.02Lux@(F1.2 AGC ON),0Lux with IR on
Angle of View
70°
Number of Infra-Red LEDs
12
Night Vision Distance
Up to 100ft/30m
DNR
DNR
Wide Dynamic Range
Digital WDR
IR Cut Filter
Yes
Video Output
HD BNCx1
General
Housing
Plastic
Color
White
Operating Power
DC12V
Operating Temperature
-40 °F – 140 °F /-40 °C – 60 °C
Indoor/Outdoor
Indoor/Outdoor
Weatherproof Rating
IP66
Dimension (L x W x H)
6.49” x2.36” x 2.36” / 165 x 60 x 60mm
Weight
0.33lbs / 150g
